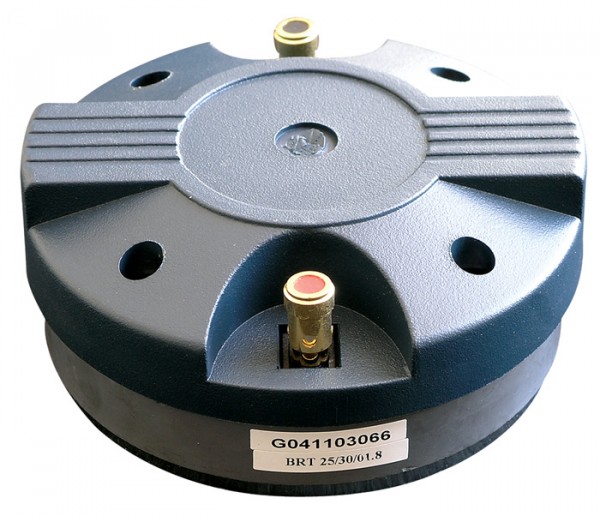

BRT 25/30/01, 8 tweeter compression driver

BRT 25/30/01, 8 tweeter compression driver

Brief description: 30 W RMS, 8 Ω, 98 dB with BRX 25/01, 1 000 – 20 000 Hz

Suitable for: professional speakers

Cat. nr.: 05 030
79,57 € with VAT
in stock

 pc
Help needed? Services for free Recommend product
Catalogue page Detail datasheet Speaker box projects Next technical informations

Description

  • zatížitelnost 30 W rms
  • impedance 8 Ω
  • Re 5,8 Ω
  • citlivost 98 s BRX 25/01 dB/1W,1m
  • frekvenční rozsah 1 000 – 20 000 Hz
  • doporučená děl. frekvence > 1 500 Hz
  • Ø cívky 34,4 mm
  • fs 1100 Hz
  • materiál membrány Ti
  • materiál cívky kapton / ccar
  • rozměr A 114 mm
  • rozměr B 56,6 mm
  • rozměr C 25 mm
  • rozměr D 51 mm
