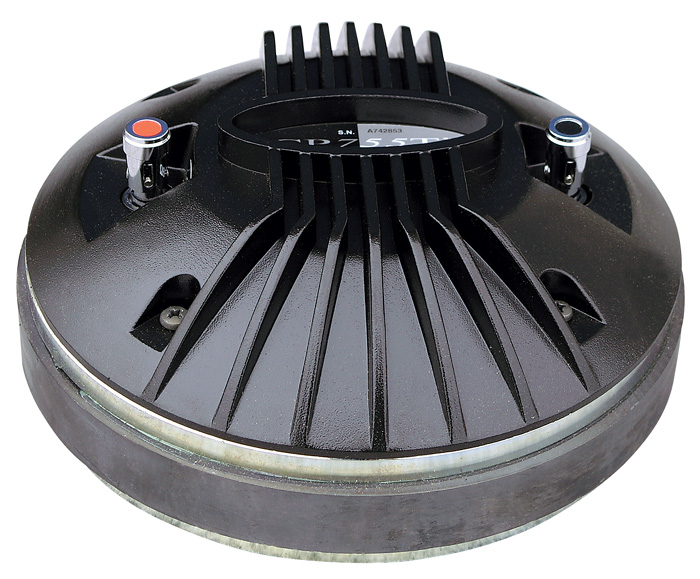

CP755/Ti tweeter compression driver

CP755/Ti tweeter compression driver

Brief description: 90 W, 8 Ω, 110 dB, 600 – 20 000 Hz, 1,4″ outlet

Suitable for: power tweeter section, for order 3pcs above, discount 20%

Cat. nr.: 02 341
275,49 € with VAT
on request

 pc
Help needed? Services for free Recommend product
Catalogue page Detail datasheet Speaker box projects Next technical informations

Description

  • zatížitelnost 70 / >800 Hz, 90 / >1,5 kHz W aes
  • impedance 8 Ω
  • Re 7,3 Ω
  • citlivost 110 dB/1W,1m s TD 565
  • frekvenční rozsah 600 – 20 000 Hz
  • doporučená dělící frekvence > 800 Hz / 12 dB / Oct.
  • Ø cívky 72,2 mm
  • materiál membrány Ti+polyester
  • materiál magnetu Ferit
  • rozměr A (vnější Ø ) 192 mm
  • rozměr B (Ø rozteče pro šroubky) 101,6 mm
  • rozměr C (vyústění) 1,4"
  • rozměr D (hloubla) 78 mm
